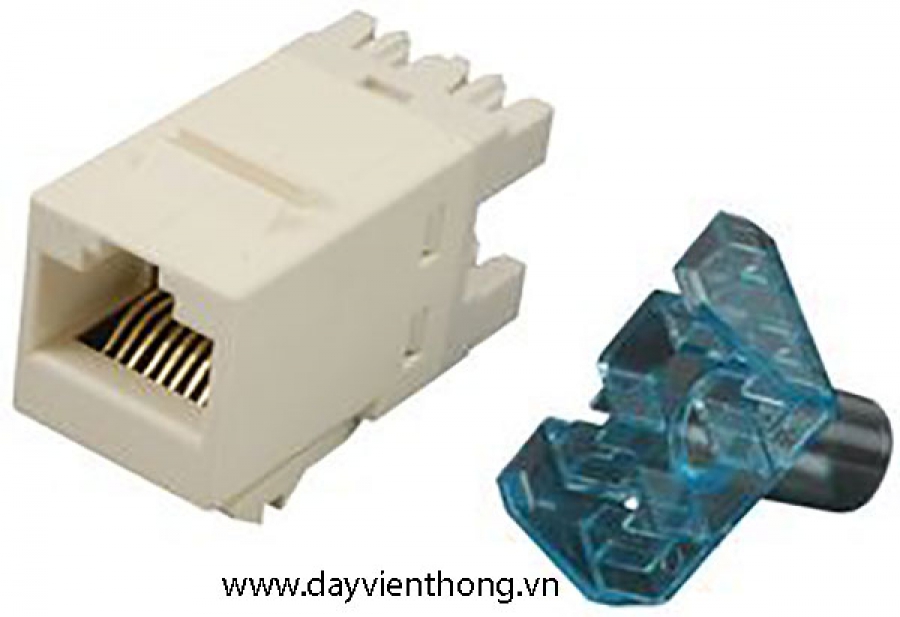

Đầu nối RJ45-Modular Jack COMMSCOPE CAT5E
Dayvienthong.vn--Đầu nối RJ45-Modular Jack COMMSCOPE CAT5E
- Part number: 1375191-1
- COMMSCOPE Category 5E Modular Jack, Unshielded, RJ45, SL, T568A/B, Almond (ASSY, SL 110JACK, C5E, LT.ALMOND).
- Materials:
o Housing – Polyphenylene oxide, 94V-0 rated
o 110 Blocks - polycarbonate, 94V-0 rated.
- Jack contacts – beryllium copper, plated with 1.27 μm [.000050] thick gold in localized area and 3.81 μm [.000150]
- minimum thick tin-lead in solder area over 1.27 μm [.000050] minimum thick nickel under plate.
- Insulation Displacement Contacts - Phosphorous bronze, plated with 3.81μm [150μin] minimum thick bright tin-lead over 1.27μm [50μin] minimum thick nickel under plate
- Electrical Characteristics:
o Modular Jack – 750 mating cycles
o Voltage – 150 VAC max.
- Operating Temperature -40°C to +70°C (-40° – 158°F)
- Mounting panel thickness: 1.473 - 1.600 mm [.058 - .063'].
- Approvals: UL File Number E81956, CSA
- Hàng chính hãng COMMSCOPE.
